The ADS1194/6/8 are a family of multichannel, simultaneous sampling, 16-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with a built-in programmable gain amplifier (PGA), internal reference, and an onboard oscillator.

With its high levels of integration and exceptional performance, the ADS1194/6/8 family enables the creation of scalable medical instrumentation systems at significantly reduced size, power, and overall cost.

The ADS1194/6/8 have a flexible input multiplexer per channel that can be independently connected to the internally-generated signals for test, temperature, and lead-off detection. Additionally, any configuration of input channels can be selected for derivation of the right leg drive (RLD) output signal. The ADS1194/6/8 operate at data rates as high as 8kSPS, thereby allowing the implementation of software pace detection. Lead-off detection can be implemented internal to the device, either with a pull-up/pull-down resistor or an excitation current sink/source. Three integrated amplifiers generate the Wilson Center Terminal (WCT) and the Goldberger terminals (GCT) required for a standard 12-lead medical electrocardiogram (ECG).

Multiple ADS1194/6/8 devices can be cascaded in high channel count systems in a daisy-chain configuration.

Package options include a tiny 8mm × 8mm, 64-ball BGA and a TQFP-64. Both packages are specified over the temperature range of 0°C to +70°C.

• Eight Low-Noise PGAs and Eight High-Resolution ADCs (ADS1198)
• Low Power: 0.55mW/channel
• Input-Referred Noise: 12μVPP (150Hz BW, G = 6)
• Input Bias Current: 200pA
• Data Rate: 125SPS to 8kSPS
• CMRR: –105dB
• Programmable Gain: 1, 2, 3, 4, 6, 8, or 12
• Supports AAMI EC11, EC13, IEC60601-1, IEC60601-2-27, and IEC60601-2-51 Standards
• Supplies: Unipolar or Bipolar
  • Analog: 2.7V to 5.25V
  • Digital: 1.65V to 3.6V
• Built-In Right Leg Drive Amplifier, Lead-Off Detection, WCT, Test Signals
• Pace Detection Channel Select
• Built-In Oscillator and Reference
• Flexible Power-Down, Standby Mode
• SPI?-Compatible Serial Interface
• Operating Temperature Range: 0°C to +70°C

• Applications
• 5-lead ECG, 6-lead ECG, Patient monitoring
• Number of input channels
• 6
• Resolution (Bits)
• 16
• Interface type
• SPI
• Operating temperature range (C)
• 0 to 70
• Rating
• Catalog

ADS1196的完整型号有：ADS1196CPAG、ADS1196CZXGT，以下是这些产品的关键参数及官网采购报价：

ADS1196CPAG，工作温度：0 to 70，封装：TQFP (PAG)-64，包装数量MPQ：160个，MSL 等级/回流焊峰值温度：Level-3-260C-168 HR，引脚镀层/焊球材料：NIPDAU，TI官网ADS1196CPAG的批量USD价格：8.026（1000+）

ADS1196CZXGT，工作温度：0 to 70，封装：NFBGA (ZXG)-64，包装数量MPQ：250个，MSL 等级/回流焊峰值温度：Level-3-260C-168 HR，引脚镀层/焊球材料：SNAGCU，TI官网ADS1196CZXGT的批量USD价格：8.026（1000+）

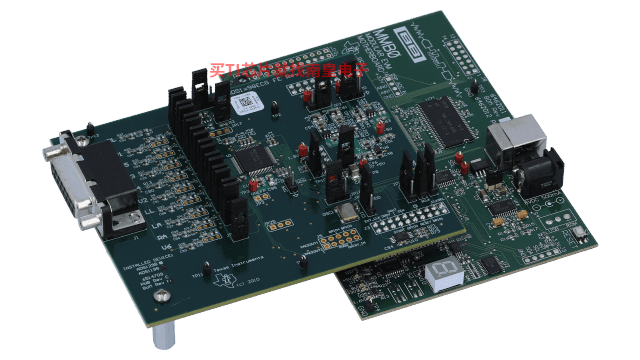

ADS1198ECGFE-PDK — ADS1198ECGFE-PDK 模拟前端性能演示套件

ADS1198ECG FE 是用于 ADS1198 同步采样 16 位 Δ-Σ (ΔΣ) 模数转换器 (ADC) 的参考设计，具有内置可编程增益放大器 (PGA)、内部参考和板载振荡器。ADS1198 将心电图 (ECG) 和脑电图 (EEG) 等医疗应用所需的所有常见功能集于一身。ADS1198ECG FE 可以与各种病患模拟器配合使用，使用户能够充分利用灵活的输入多路复用器，该多路复用器可单独与内部生成的信号相连，便于进行测试、温度及导联断线检测。

ADS119x IBIS Model (Rev. C)

PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用，包括业内超大的模型库之一，涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。

借助?PSpice for TI 的设计和仿真环境及其内置的模型库，您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案，然后再进行布局和制造，可缩短产品上市时间并降低开发成本。

在?PSpice for TI 设计和仿真工具中，您可以搜索 TI (...)

TIPD197 — 软件起搏器检测参考设计

该电路旨在对 ADS129x 上集成 PACE_OUT 缓冲器的心电图信号输出进行调节和数字化，以检测人工起搏器的伪像。该电路包含一个用作快速采样 SAR ADC 的信号调节器和输入驱动器的运算放大器。
