CDCE937的基本参数
  • 制造厂商:TI
  • 产品类别:时钟和计时
  • 技术类目:时钟发生器
  • 功能描述:具有 2.5V 或 3.3V LVCMOS 输出的可编程 3-PLL VCXO 时钟合成器
  • 点击这里打开及下载CDCE937的技术文档资料
  • TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格
快速报价,在行业拥有较高的知名度及影响力
CDCE937的产品详情:

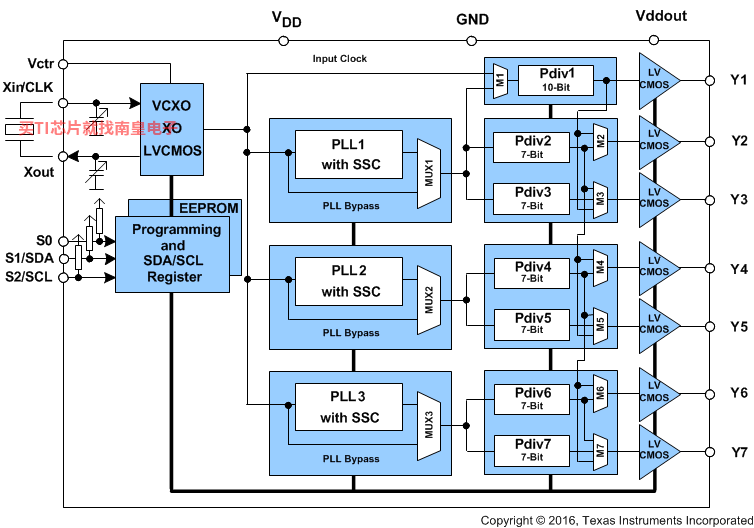

The CDCE937 and CDCEL937 devices are modular PLL-based low cost, high-performance, programmable clock synthesizers, multipliers and dividers. They generate up to 7 output clocks from a single input frequency. Each output can be programmed in-system for any clock frequency up to 230 MHz, using up to three independent configurable PLLs.

The CDCEx937 has separate output supply pins, VDDOUT, which is 1.8 V for CDCEL937 and to 2.5 V to 3.3 V for CDCE937.

The input accepts an external crystal or LVCMOS clock signal. If an external crystal is used, an on-chip load capacitor is adequate for most applications. The value of the load capacitor is programmable from 0 to 20 pF. Additionally, an on-chip VCXO is selectable which allows synchronization of the output frequency to an external control signal, that is, PWM signal.

CDCE937的优势和特性:
  • Member of Programmable Clock Generator Family
    • CDCEx913: 1-PLL, 3 Outputs
    • CDCEx925: 2-PLL, 5 Outputs
    • CDCEx937: 3-PLL, 7 Outputs
    • CDCEx949: 4-PLL, 9 Outputs
  • In-System Programmability and EEPROM
    • Serial Programmable Volatile Register
    • Nonvolatile EEPROM to Store Customer Setting
  • Flexible Input Clocking Concept
    • External Crystal: 8 MHz to 32 MHz
    • On-Chip VCXO: Pull Range ±150 ppm
    • Single-Ended LVCMOS up to 160 MHz
  • Free Selectable Output Frequency up to 230 MHz
  • Low-Noise PLL Core
    • PLL Loop Filter Components Integrated
    • Low Period Jitter (Typical 60 ps)
  • Separate Output Supply Pins
    • CDCE937: 3.3 V and 2.5 V
    • CDCEL937: 1.8 V
  • Flexible Clock Driver
    • Three User-Definable Control Inputs [S0/S1/S2], for Example, SSC Selection, Frequency Switching, Output Enable or Power Down
    • Generates Highly Accurate Clocks for Video, Audio, USB, IEEE1394, RFID, Bluetooth?, WLAN, Ethernet?, and GPS
    • Generates Common Clock Frequencies Used With TI-DaVinci?, OMAP?, DSPs
    • Programmable SSC Modulation
    • Enables 0-PPM Clock Generation
  • 1.8-V Device Power Supply
  • Wide Temperature Range –40°C to 85°C

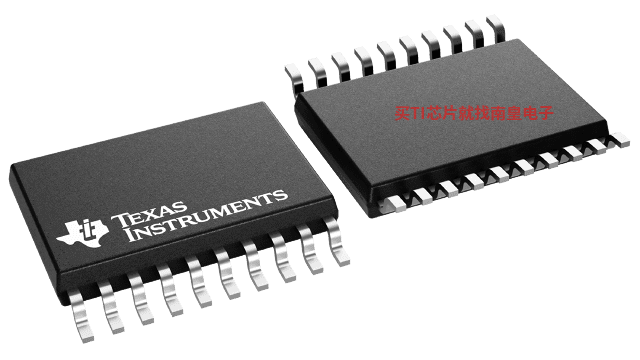

  • Packaged in TSSOP
  • Development and Programming Kit for Easy PLL Design and Programming (TI Pro-Clock?)
  • APPLICATIONS
    • D-TVs, STBs, IP-STBs, DVD Players, DVD Recorders, and Printers

All other trademarks are the property of their respective owners

CDCE937的参数(英文):
  • Function
  • Clock synthesizer
  • Number of outputs
  • 7
  • Output frequency (Max) (MHz)
  • 230
  • Core supply voltage (V)
  • 1.8
  • Output supply voltage (V)
  • 2.5, 3.3
  • Input type
  • XTAL, LVCMOS
  • Output type
  • LVCMOS
  • Operating temperature range (C)
  • -40 to 85
  • Features
  • Integrated EEPROM, Multiplier or divider, Spread-spectrum clocking (SSC)
  • Rating
  • Catalog
CDCE937具体的完整产品型号参数及价格(美元):

CDCE937的完整型号有:CDCE937PW、CDCE937PWR、HPA00406PWR,以下是这些产品的关键参数及官网采购报价:

CDCE937PW,工作温度:-40 to 85,封装:TSSOP (PW)-20,包装数量MPQ:70个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网CDCE937PW的批量USD价格:2.26(1000+)

CDCE937PWR,工作温度:-40 to 85,封装:TSSOP (PW)-20,包装数量MPQ:2000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:NIPDAU,TI官网CDCE937PWR的批量USD价格:1.883(1000+)

HPA00406PWR,工作温度:-40 to 85,封装:TSSOP (PW)-20,包装数量MPQ:2000个,MSL 等级/回流焊峰值温度:-,引脚镀层/焊球材料:-,TI官网HPA00406PWR的批量USD价格:1.883(1000+)

轻松满足您的TI芯片采购需求
CDCE937的评估套件:

CDCEL9XXPROGEVM — CDCE(L)949 系列 EEPROM 编程板

CDCE(L)949 系列时钟发生器集成了 EEPROM,允许在启动后保存默认频率设置。CDCEL9XXPROGEVM 是允许对原型样片或小批量生产进行快速编程的编程板。它适用于该系列的全部 8 款器件:CDCE949、CDCE937、CDCE925、CDCE913、CDCEL949、CDCEL937、CDCEL925 和 CDCEL913,并且带有易于使用的通用插座。

此外还提供另一个用于性能测试和评估的 EVM,其器件型号为 CDCE(L)9xxPERF-EVM,此性能评估模块适用于每个单独器件。

Drivers for the CDCEL9xx programmer EVM

TI's ClockPro software allows users to program/configure the following devices in a friendly GUI interface:
  • CDCE949
  • CDCE937
  • CDCE925
  • CDCE913
  • CDCE906
  • CDCE706
  • CDCEL949
  • CDCEL937
  • CDCEL925
  • CDCEL913

It is intended to be used with the evaluation modules of the above devices.

ClockPro Software (Rev. E)

PSpice for TI 可提供帮助评估模拟电路功能的设计和仿真环境。此功能齐全的设计和仿真套件使用 Cadence 的模拟分析引擎。PSpice for TI 可免费使用,包括业内超大的模型库之一,涵盖我们的模拟和电源产品系列以及精选的模拟行为模型。

借助?PSpice for TI 的设计和仿真环境及其内置的模型库,您可对复杂的混合信号设计进行仿真。创建完整的终端设备设计和原型解决方案,然后再进行布局和制造,可缩短产品上市时间并降低开发成本。

在?PSpice for TI 设计和仿真工具中,您可以搜索 TI (...)

CLOCK-TREE-ARCHITECT — 时钟树架构编程软件

时钟树架构是一款时钟树综合工具,可根据您的系统要求生成时钟树解决方案,从而帮助您简化设计流程。该工具从庞大的时钟产品数据库中提取数据,然后生成系统级多芯片时钟解决方案。

TIDA-01352 — 400W 连续、可扩展、±2.5 至 ±150V、可编程的超声波电源参考设计

TIDA-01352 为向超声波发射电路供电的数字化可编程电源提供解决方案,以此来实现模块化和高效的功率调节能力。此参考设计使用推挽式拓扑来生成高压 (HV) 和低压 (LV) 或 MID 电压电源。HV 电压轨可在 ±50V 到 ±150V 之间进行编程,而 LV 或 MID 电压轨可在 ±2.5V 到 ±50V 之间进行编程。电源能够在每个电压轨上提供 100W 的连续功率。可编程能力是通过使用板载、12 位数模转换器 (DAC) (...)
