  • 制造厂商:TI
  • 产品类别:传感器
  • 技术类目:温度传感器和控制 IC - 数字温度传感器
  • 功能描述:具有 I2C/SMBus 接口的 ±2°C、3.0V 至 5.5V 业界通用温度传感器
  • 点击这里打开及下载LM75B的技术文档资料
  • TI代理渠道,提供当日发货、严格的质量标准,满足您的目标价格

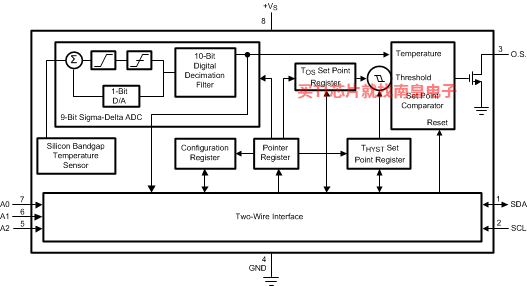

The LM75B and LM75C are industry-standard digital temperature sensors with an integrated Sigma-Delta analog-to-digital converter and I2C interface. The LM75 provides 9-bit digital temperature readings with an accuracy of ±2°C from -25°C to 100°C and ±3°C over –55°C to 125°C.

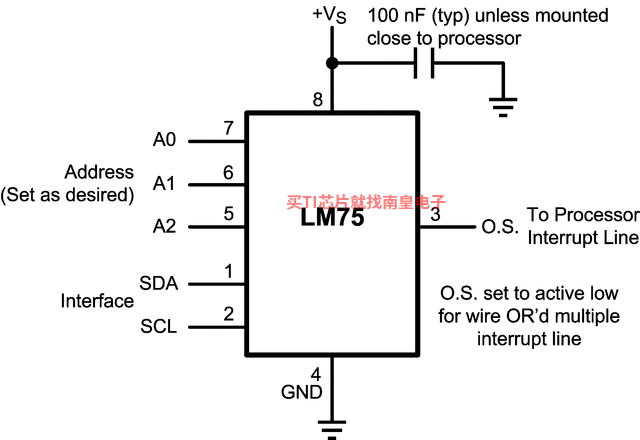

Communication is accomplished over a 2-wire interface which operates up to 400kHz. The LM75 has three address pins, allowing up to eight LM75 devices to operate on the same 2-wire bus. The LM75 has a dedicated over-temperature output (O.S.) with programmable limit and hystersis. This output has programmable fault tolerance, which allows the user to define the number of consecutive error conditions that must occur before O.S. is activated.

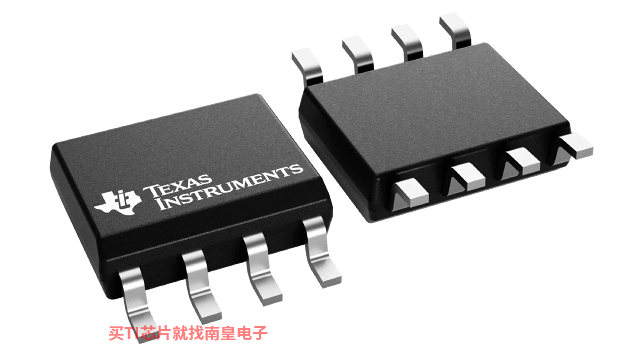

The wide temperature and supply range and I2C interface make the LM75 ideal for a number of applications including base stations, electronic test equipment, office electronics, personal computers, and any other system where thermal management is critical to performance. The LM75B and LM75C are available in an SOIC package or VSSOP package.

  • No External Components Required
  • Shutdown Mode to Minimize Power Consumption
  • Up to Eight LM75s Can be Connected to a Single Bus
  • Power Up Defaults Permit Stand-alone Operation as Thermostat
  • UL Recognized Component (LM75B and LM75C)
  • Key Specifications:
    • Supply Voltage
      • LM75B, LM75C: 3 V to 5.5 V

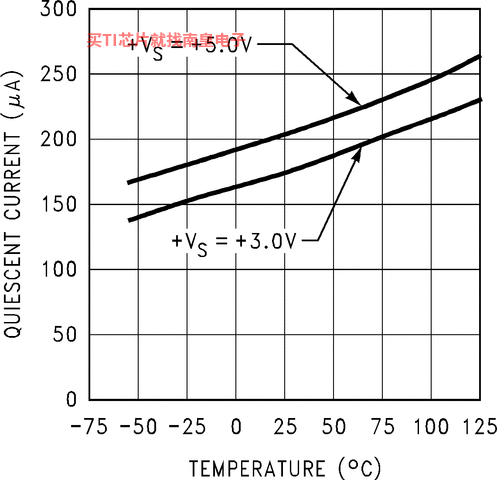

    • Supply Current
      • Operating: 280 μA (typical)
      • Shutdown: 4 μA (typical)
    • Temperature Accuracy
      • ?25°C to 100°C: ±2°C (maximum)
      • ?55°C to 125°C: ±3°C (maximum)

All trademarks are the property of their respective owners.

  • Local sensor accuracy (Max) (+/- C)
  • 2
  • Type
  • Local
  • Operating temperature range (C)
  • -55 to 125
  • Supply voltage (Min) (V)
  • 3
  • Interface type
  • I2C, SMBus
  • Supply voltage (Max) (V)
  • 5.5
  • Supply current (Max) (uA)
  • 500
  • Temp resolution (Max) (bits)
  • 9
  • Features
  • UL recognized
  • Remote channels (#)
  • 0
  • Addresses
  • 8
  • Rating
  • Catalog


LM75BIM-3/NOPB,工作温度:-55 to 125,封装:SOIC (D)-8,包装数量MPQ:95个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:SN,TI官网LM75BIM-3/NOPB的批量USD价格:.893(1000+)

LM75BIM-5/NOPB,工作温度:-55 to 125,封装:SOIC (D)-8,包装数量MPQ:95个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:SN,TI官网LM75BIM-5/NOPB的批量USD价格:.893(1000+)

LM75BIMM-3/NOPB,工作温度:-55 to 125,封装:VSSOP (DGK)-8,包装数量MPQ:1000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:SN,TI官网LM75BIMM-3/NOPB的批量USD价格:.893(1000+)

LM75BIMM-5/NOPB,工作温度:-55 to 125,封装:VSSOP (DGK)-8,包装数量MPQ:1000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:SN,TI官网LM75BIMM-5/NOPB的批量USD价格:.893(1000+)

LM75BIMMX-3/NOPB,工作温度:-55 to 125,封装:VSSOP (DGK)-8,包装数量MPQ:3500个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:SN,TI官网LM75BIMMX-3/NOPB的批量USD价格:.744(1000+)

LM75BIMMX-5/NOPB,工作温度:-55 to 125,封装:VSSOP (DGK)-8,包装数量MPQ:3500个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:SN,TI官网LM75BIMMX-5/NOPB的批量USD价格:.744(1000+)

LM75BIMX-3/NOPB,工作温度:-55 to 125,封装:SOIC (D)-8,包装数量MPQ:2500个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:SN,TI官网LM75BIMX-3/NOPB的批量USD价格:.744(1000+)

LM75BIMX-5/NOPB,工作温度:-55 to 125,封装:SOIC (D)-8,包装数量MPQ:2500个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:SN,TI官网LM75BIMX-5/NOPB的批量USD价格:.744(1000+)

LM75BIM-3,工作温度:-55 to 125,封装:SOIC (D)-8,包装数量MPQ:95个,MSL 等级/回流焊峰值温度:Level-1-235C-UNLIM,引脚镀层/焊球材料:SNPB,TI官网LM75BIM-3的批量USD价格:1.153(1000+)

LM75BIM-5,工作温度:-55 to 125,封装:SOIC (D)-8,包装数量MPQ:95个,MSL 等级/回流焊峰值温度:Level-1-235C-UNLIM,引脚镀层/焊球材料:SNPB,TI官网LM75BIM-5的批量USD价格:1.153(1000+)

LM75BIMM-3,工作温度:-55 to 125,封装:VSSOP (DGK)-8,包装数量MPQ:1000个,MSL 等级/回流焊峰值温度:Level-1-260C-UNLIM,引脚镀层/焊球材料:SNPB,TI官网LM75BIMM-3的批量USD价格:1.153(1000+)

LM75BIMX-3,工作温度:-55 to 125,封装:SOIC (D)-8,包装数量MPQ:2500个,MSL 等级/回流焊峰值温度:Level-1-235C-UNLIM,引脚镀层/焊球材料:SNPB,TI官网LM75BIMX-3的批量USD价格:1.004(1000+)

LM75BIMX-5,工作温度:-55 to 125,封装:SOIC (D)-8,包装数量MPQ:2500个,MSL 等级/回流焊峰值温度:Level-1-235C-UNLIM,引脚镀层/焊球材料:SNPB,TI官网LM75BIMX-5的批量USD价格:1.004(1000+)


TIDA-010008 — 用于针对电网应用提供瞬态保护且基于平缓钳位 TVS 的参考设计

该参考设计采用多种方法,使用平缓钳位浪涌保护措施、ESD 器件、电子保险丝或负载开关,来保护交流或直流模拟输入、直流模拟输出、交流或直流二进制输入、带高侧或低侧驱动器的数字输出、LCD 偏置电源、USB 接口(电源和数据)和具有 24、12 或 5V 输入的板载电源(用于多个电网应用),使其免受过压、过载和瞬变(1.2/50us,42Ω)的影响。该设计监测温度、湿度、磁场和电源以进行诊断。
