These Schmitt-trigger devices contain six independent inverters. They perform the Boolean function Y = A. Because of the Schmitt action, they have different input threshold levels for positive-going (V_T+) and for negative-going (V_T–) signals.

These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean, jitter-free output signals. They also have a greater noise margin than conventional inverters.

• 2-V to 6-V VCC Operation
• Inputs Accept Voltages to 6 V
• Max tpd of 9.5 ns at 5 V
• Rad-Tolerant: 50 kRad(Si) TID(1)
  • TID Dose Rate < 2mRad/sec
• QML-V Qualified, SMD 5962-87624

(1) Radiation tolerance is a typical value based upon initial device qualification. Radiation Lot Acceptance Testing is available - contact factory for details.

• Technology Family
• AC
• Supply voltage (Min) (V)
• 2
• Supply voltage (Max) (V)
• 6
• Number of channels (#)
• 6
• IOL (Max) (mA)
• 24
• IOH (Max) (mA)
• -24
• ICC (Max) (uA)
• 80
• Input type
• Schmitt-Trigger
• Output type
• Push-Pull
• Features
• Balanced outputs, Very high speed (tpd 5-10ns)
• Rating
• Space

SN54AC14-SP的完整型号有：5962-8762401VCA、5962-8762401VDA、5962-8762402VCA、5962-8762402VDA，以下是这些产品的关键参数及官网采购报价：

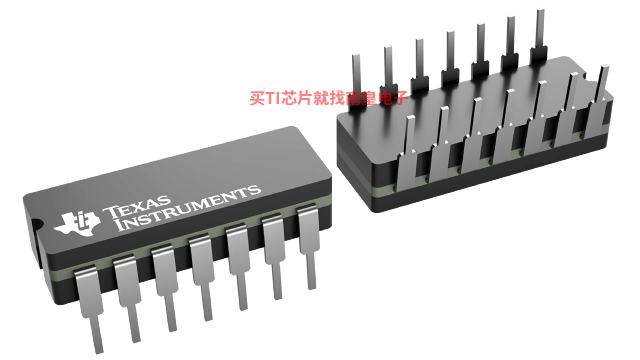

5962-8762401VCA，工作温度：-55 to 125，封装：CDIP (J)-14，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网5962-8762401VCA的批量USD价格：66.528（1000+）

5962-8762401VDA，工作温度：-55 to 125，封装：CFP (W)-14，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网5962-8762401VDA的批量USD价格：79.834（1000+）

5962-8762402VCA，工作温度：-55 to 125，封装：CDIP (J)-14，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网5962-8762402VCA的批量USD价格：224.532（1000+）

5962-8762402VDA，工作温度：-55 to 125，封装：CFP (W)-14，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网5962-8762402VDA的批量USD价格：269.438（1000+）
