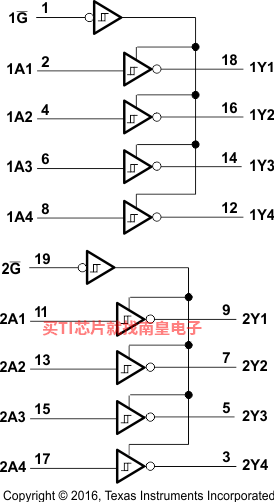

The SNx4LS24x, SNx4S24x octal buffers and line drivers are designed specifically to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The designer has a choice of selected combinations of inverting and non-inverting outputs, symmetrical, active-low output-control (G) inputs, and complementary output-control (G and G) inputs. These devices feature high fan-out, improved fan-in, and 400-mV noise margin. The SN74LS24x and SN74S24x devices can be used to drive terminated lines down to 133 Ω.

• Inputs Tolerant Down to 2 V, Compatible With 3.3-V or 2.5-V Logic Inputs
• Maximum tpd of 15 ns at 5 V
• 3-State Outputs Drive Bus Lines or Buffer Memory Address Registers
• PNP Inputs Reduce DC Loading
• Hysteresis at Inputs Improves Noise Margins

• Technology Family
• LS
• Supply voltage (Min) (V)
• 4.5
• Supply voltage (Max) (V)
• 5.5
• Number of channels (#)
• 8
• IOL (Max) (mA)
• 24
• ICC (Max) (uA)
• 46000
• IOH (Max) (mA)
• -15
• Input type
• Bipolar
• Output type
• 3-State
• Features
• High speed (tpd 10-50ns)
• Rating
• Space

SN54LS244-SP的完整型号有：JM38510/32403SRA、JM38510/32403SSA、M38510/32403SRA、M38510/32403SSA，以下是这些产品的关键参数及官网采购报价：

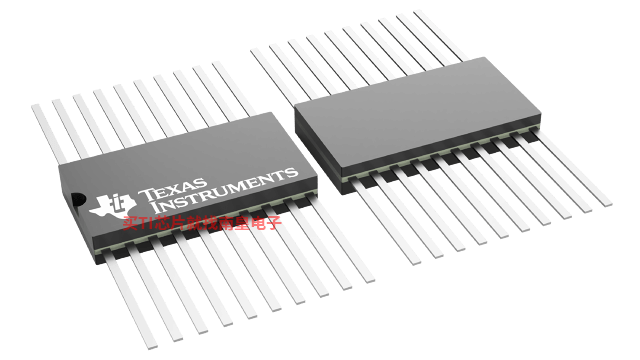

JM38510/32403SRA，工作温度：-55 to 125，封装：CDIP (J)-20，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网JM38510/32403SRA的批量USD价格：120.032（1000+）

JM38510/32403SSA，工作温度：-55 to 125，封装：CFP (W)-20，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网JM38510/32403SSA的批量USD价格：144.038（1000+）

M38510/32403SRA，工作温度：-55 to 125，封装：CDIP (J)-20，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网M38510/32403SRA的批量USD价格：120.032（1000+）

M38510/32403SSA，工作温度：-55 to 125，封装：CFP (W)-20，包装数量MPQ：1个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SNPB，TI官网M38510/32403SSA的批量USD价格：144.038（1000+）
