SN74ABT16470_TI 具有三态输出的 16 位寄存收发器

SN74ABT16470的基本参数

制造厂商：TI（德州仪器，Texas Instruments）
产品类别：逻辑和电压转换
技术类目：缓冲器、驱动器和收发器 - 通用收发器
功能描述：具有三态输出的 16 位寄存收发器
点击这里打开及下载SN74ABT16470的技术文档资料
TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格

SN74ABT16470的产品详情：

The 'ABT16470 are 16-bit registered transceivers that contain two sets of D-type flip-flops for temporary storage of data flowing in either direction. The 'ABT16470 can be used as two 8-bit transceivers or one 16-bit transceiver. Separate clock (CLKAB or CLKBA) and output-enable (OEAB\ or OEBA\) inputs are provided for each register to permit independent control in either direction of data flow.

To avoid false clocking of the flip-flops, clock enable (CLKEN\) should not be switched from high to low while CLK is high.

To ensure the high-impedance state during power up or power down, OE\ should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

The SN54ABT16470 is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABT16470 is characterized for operation from -40°C to 85°C.

SN74ABT16470的优势和特性：

Members of the Texas Instruments WidebusTM Family
State-of-the-Art EPIC-II BTM BiCMOS Design Significantly Reduces Power Dissipation
Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD-17
Typical VOLP (Output Ground Bounce) < 1 V at VCC = 5 V, TA = 25°C
Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise
Flow-Through Architecture Optimizes PCB Layout
High-Drive Outputs (-32-mA IOH, 64-mA IOL)
Package Options Include Plastic 300-mil Shrink Small-Outline (DL) and Thin Shrink Small-Outline (DGG) Packages and 380-mil Fine-Pitch Ceramic Flat (WD) Package Using 25-mil Center-to-Center Spacings

Widebus and EPIC-IIB are trademarks of Texas Instruments Incorporated.

SN74ABT16470的参数（英文）：

IOL (Max) (mA)
64
IOH (Max) (mA)
-32
Technology Family
ABT
Rating
Catalog
Operating temperature range (C)
-40 to 85

SN74ABT16470具体的完整产品型号参数及价格（美元）：

SN74ABT16470的完整型号有：SN74ABT16470DGGR、SN74ABT16470DL，以下是这些产品的关键参数及官网采购报价：

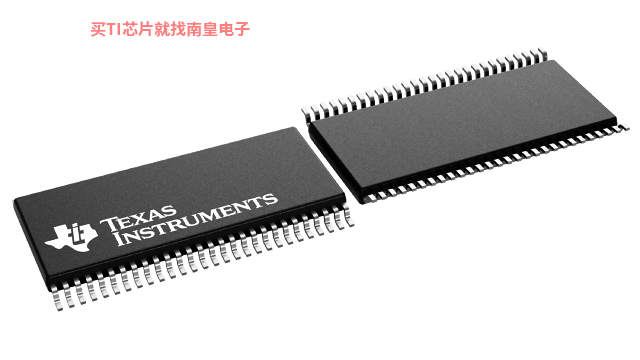

SN74ABT16470DGGR，工作温度：-40 to 85，封装：TSSOP (DGG)-56，包装数量MPQ：2000个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74ABT16470DGGR的批量USD价格：5.327（1000+）

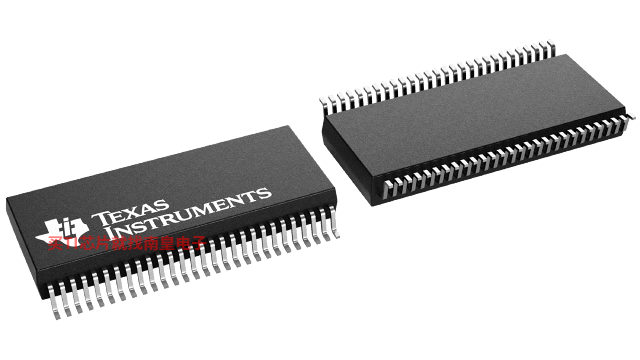

SN74ABT16470DL，工作温度：-40 to 85，封装：SSOP (DL)-56，包装数量MPQ：20个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74ABT16470DL的批量USD价格：5.327（1000+）
