SN74AS374_TI 具有三态输出的八路边沿触发式 D 型触发器

SN74AS374的基本参数

制造厂商：TI（德州仪器，Texas Instruments）
产品类别：逻辑和电压转换
技术类目：触发器、锁存器和寄存器 - D 型触发器
功能描述：具有三态输出的八路边沿触发式 D 型触发器
点击这里打开及下载SN74AS374的技术文档资料
TI代理渠道，提供当日发货、严格的质量标准，满足您的目标价格

SN74AS374的产品详情：

These octal D-type edge-triggered flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

On the positive transition of the clock (CLK) input, the Q outputs are set to the logic levels set up at the data (D) inputs.

A buffered output-enable (OE\) input places the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines without interface or pullup components.

OE\ does not affect internal operations of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.

The SN54ALS374A and SN54AS374 are characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALS374A and SN74AS374 are characterized for operation from 0°C to 70°C.

SN74AS374的优势和特性：

D-Type Flip-Flops in a Single Package With 3-State Bus Driving True Outputs
Full Parallel Access for Loading
Buffered Control Inputs
Package Options Include Plastic Small-Outline (DW) Packages, Ceramic Chip Carriers (FK), and Standard Plastic (N) and Ceramic (J) DIPs

SN74AS374的参数（英文）：

Number of channels (#)
8
Technology Family
AS
Supply voltage (Min) (V)
4.5
Supply voltage (Max) (V)
5.5
Input type
Bipolar
Output type
3-State
Clock Frequency (Max) (MHz)
100
IOL (Max) (mA)
48
IOH (Max) (mA)
-15
ICC (Max) (uA)
128000
Features
Very high speed (tpd 5-10ns)

SN74AS374具体的完整产品型号参数及价格（美元）：

SN74AS374的完整型号有：SN74AS374DW、SN74AS374N，以下是这些产品的关键参数及官网采购报价：

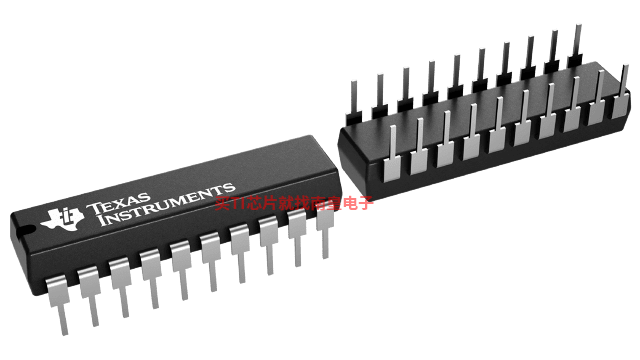

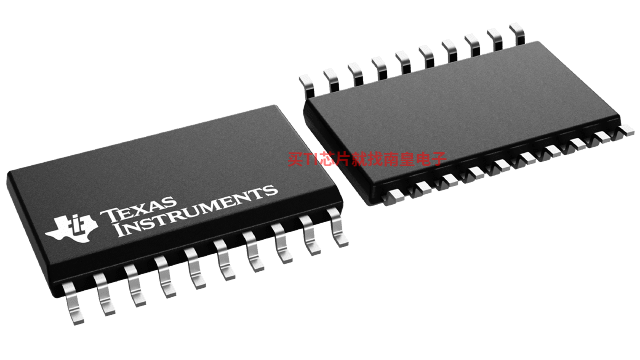

SN74AS374DW，工作温度：0 to 70，封装：SOIC (DW)-20，包装数量MPQ：25个，MSL 等级/回流焊峰值温度：Level-1-260C-UNLIM，引脚镀层/焊球材料：NIPDAU，TI官网SN74AS374DW的批量USD价格：1.735（1000+）

SN74AS374N，工作温度：0 to 70，封装：PDIP (N)-20，包装数量MPQ：20个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：NIPDAU，TI官网SN74AS374N的批量USD价格：1.995（1000+）

SN74AS374的评估套件：

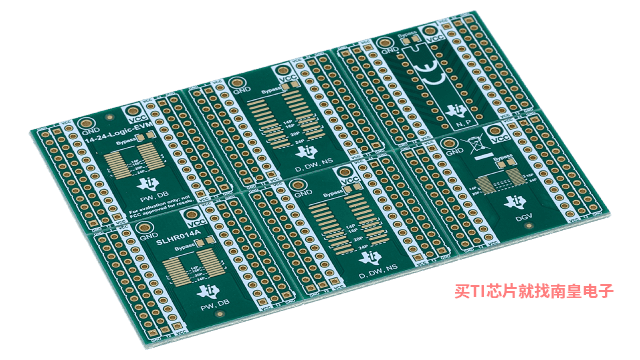

14-24-LOGIC-EVM 支持 14 到 24 引脚 PW、DB、D、DW、NS、DYY 和 DGV 封装的通用逻辑 EVM

该 EVM 设计用于支持采用 14 至 24 引脚 D、DW、DB、NS、PW、DYY 或 DGV 封装的任何逻辑器件。
