This series of fixed-negative-voltage integrated-circuit voltage regulators is designed to complement Series µA7900 in a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current limiting and thermal shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.

• 3-Terminal Regulators
• Output Current up to 1.5 A
• No External Components
• Internal Thermal-Overload Protection
• High Power-Dissipation Capability
• Internal Short-Circuit Current Limiting
• Output Transistor Safe-Area Compensation

PowerFLEX, PowerPAD are trademarks of Texas Instruments.

• Output options
• Fixed Output, Negative Output
• Iout (Max) (A)
• 1.5
• Vin (Max) (V)
• -7
• Vin (Min) (V)
• -25
• Vout (Max) (V)
• -5
• Vout (Min) (V)
• -8
• Fixed output options (V)
• -8, -5
• Noise (uVrms)
• 125
• Iq (Typ) (mA)
• 1.5
• Thermal resistance θJA (°C/W)
• 19
• Rating
• Catalog
• Load capacitance (Min) (F)
• 0.1
• Regulated outputs (#)
• 1
• Features
• Accuracy (%)
• 3.75
• Dropout voltage (Vdo) (Typ) (mV)
• 1100
• Operating temperature range (C)
• 0 to 125

UA79的完整型号有：UA7905CKCS、UA7905CKTTR、UA7908CKCS，以下是这些产品的关键参数及官网采购报价：

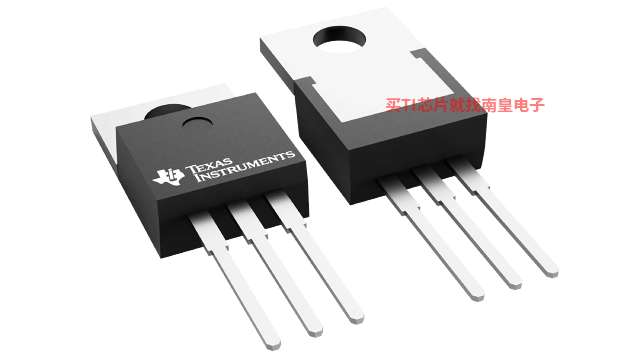

UA7905CKCS，工作温度：0 to 125，封装：TO-220 (KCS)-3，包装数量MPQ：50个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SN，TI官网UA7905CKCS的批量USD价格：.239（1000+）

UA7905CKTTR，工作温度：0 to 125，封装：DDPAK/TO-263 (KTT)-3，包装数量MPQ：500个，MSL 等级/回流焊峰值温度：Level-3-245C-168 HR，引脚镀层/焊球材料：SN，TI官网UA7905CKTTR的批量USD价格：.428（1000+）

UA7908CKCS，工作温度：0 to 125，封装：TO-220 (KCS)-3，包装数量MPQ：50个，MSL 等级/回流焊峰值温度：N/A for Pkg Type，引脚镀层/焊球材料：SN，TI官网UA7908CKCS的批量USD价格：.66（1000+）
