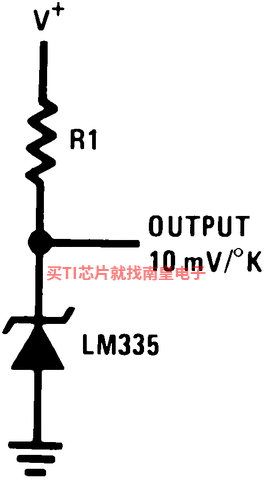

The LM135 series are precision, easily-calibrated, integrated circuit temperature sensors. Operating as a 2-terminal zener, the LM135 has a breakdown voltage directly proportional to absolute temperature at 10 mV/°K. With less than 1-Ω dynamic impedance, the device operates over a current range of 400 µA to 5 mA with virtually no change in performance. When calibrated at 25°C, the LM135 has typically less than 1°C error over a 100°C temperature range. Unlike other sensors, the LM135 has a linear output.

Applications for the LM135 include almost any type of temperature sensing over a –55°C to 150°C temperature range. The low impedance and linear output make interfacing to readout or control circuitry are especially easy.

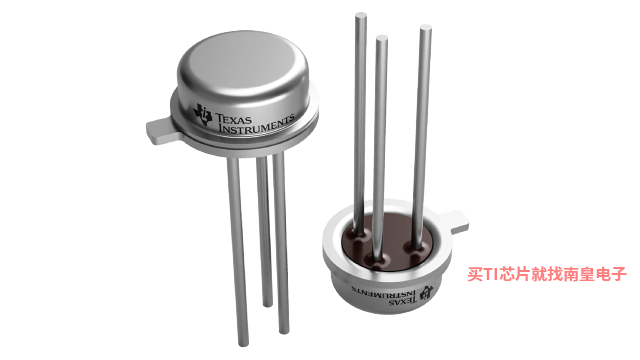

The LM135 operates over a –55°C to 150°C temperature range while the LM235 operates over a –40°C to 125°C temperature range. The LM335 operates from –40°C to 100°C. The LMx35 devices are available packaged in hermetic TO transistor packages while the LM335 is also available in plastic

• Directly Calibrated to the Kelvin Temperature Scale
• 1°C Initial Accuracy Available
• Operates from 400 A to 5 mA
• Less than 1-Ω Dynamic Impedance
• Easily Calibrated
• Wide Operating Temperature Range
• 200°C Overrange
• Low Cost

• Local sensor accuracy (Max) (+/- C)
• 3
• Operating temperature range (C)
• -55 to 150
• Supply voltage (Min) (V)
• 5
• Supply voltage (Max) (V)
• 3.01
• Supply current (Max) (uA)
• 400
• Interface type
• Analog output
• Sensor gain (mV/Deg C)
• 10
• Rating
• Catalog

LM135的完整型号有：LM135H、LM135H/NOPB，以下是这些产品的关键参数及官网采购报价：

LM135H，工作温度：-55 to 150，封装：TO (NDV)-3，包装数量MPQ：500个，MSL 等级/回流焊峰值温度：Call TI，引脚镀层/焊球材料：Call TI，TI官网LM135H的批量USD价格：6.875（1000+）

LM135H/NOPB，工作温度：-55 to 150，封装：TO (NDV)-3，包装数量MPQ：500个，MSL 等级/回流焊峰值温度：Level-1-NA-UNLIM，引脚镀层/焊球材料：Call TI，TI官网LM135H/NOPB的批量USD价格：5.864（1000+）
